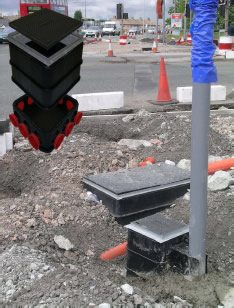

STAKKAbox™ Traffic Signalling & Streetlighting Chambers


 VERY strong—the only UK TSSL Chamber that takes a 40 tonne vertical load without the need for concrete backfill
· Lightweight—1 man installation
· Simple duct entry via pre-made & capped holes
· Full range of lightweight composite covers



Clear opening

Outside maximum

Duct Entries

Product Code

300 x 300

389 x 389

8

A253

450 x 300

539 x 389

10

A254

450 x 450

539 x 539

12

A255

600 x 450

689 x 539

14

A256

600 x 600

689 x 689

16

A257

900 x 450

989 x 539

18

A258

900 x 600

989 x 689

20

A259





Comparison to liner systems



LINER

VS

STAKKAbox

< 5 Tonnes

Unsupported vertical loading

BSEN124 D400

No Standard

Unsupported side loading

BS5834-1: 1985

No

Fits around existing services without losing structural integrity

Yes

=

Installed cost comparison

=

BRICK

VS

STAKKAbox

2 Days

Time to construct

30 Minutes

Yes

Skilled labour required

No

+50%

Installed cost comparison

-50%
